What is Plastic Injection Mould
Injection moulding is the most important processing technique for ‘thermoplastics’ – also known as plastic in English .
In plastic injection moulding, also called plastic moulding , plastic granules or powder are melted and then – as a liquid mass – injected under high pressure into an injection mould (a mould), the cavity of which has the shape of the desired product. By cooling, the plastic solidifies and the product takes its shape. The entire injection molding process (the injection moulding cycle ) comprises a total of seven steps and is in most cases fully automatic.
Injection moulding is a relatively quick and simple process, making it ideal for mass production. It is also relatively inexpensive, making it a popular choice for manufacturers.
Injection Mould by Application

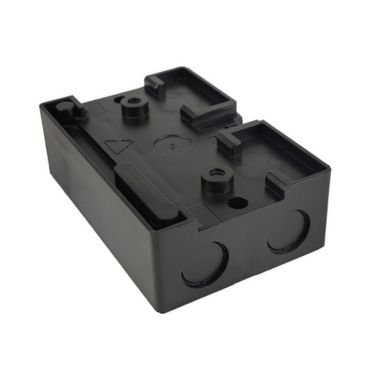

D-top Mould serve a wide range of industries include consumer electronics, Automotive, Industrial, and Household Appliance Industry.
Injection Mould By Application
D-top Mould focus on custom mold making and injection molding service for customers around the world
-

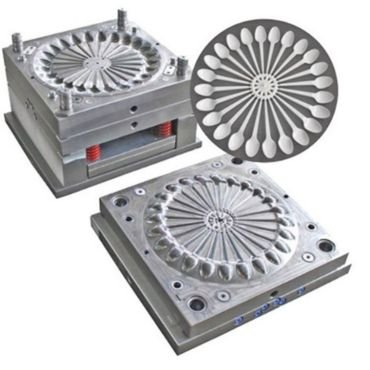

The plastic culetry and Spoon mold made as below parameters :
P20 Mold Steel
S50C Mold Base
Work on :220 T injection Machine
Mold parameter can be customized as your request .
-

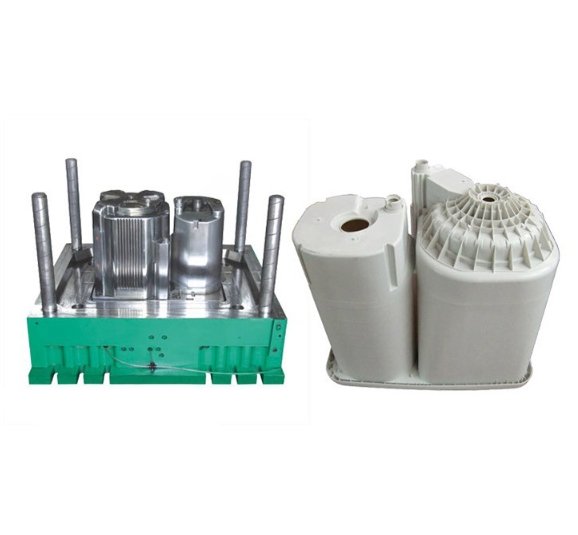

Household Appliance wash machine Injection MouldThe plastic wash machine housing mold made as below parameters :
S136 Mold Steel
S50C Mold Base
Work on :760 T injection Machine
Mold parameter can be customized as your request .
-
Plastic Pellet Injection MouldThe pallet injection mold made as below Parameters:
Work on :25000T injection Machine
Mold Steel :DIN 1：2311
Mold Life :1 Millon Shots
Mold parameter can be customized as your request .
-

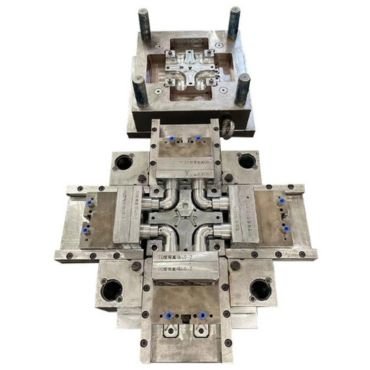

Plastic Pipe Tube MouldThe plastic pipe tube mould made as below Parameters:
Work on :460T injection Machine
Mold Core :P20,S136,718
Mold Base :LKM 420
Mold parameter can be customized as your request .
-

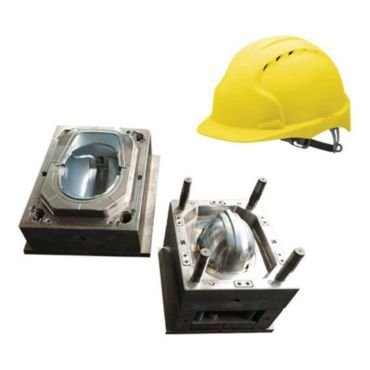

Plastic Helmet Injection MouldThe plastic helmet injection mould made as below Parameters:
Work on :380T injection Machine
Mold Core :P20,S136,718
Mold Base :S50c
Mold parameter can be customized as your request .
-

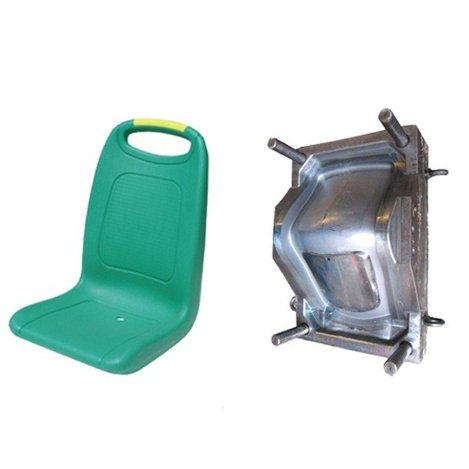

Plastic Chair Injection MouldThe plastic chair injection mould made as below Parameters:
Work on :460T injection Machine
Mold Core :P20,S136,718
Mold Base :S50c
Mold parameter can be customized as your request .
-

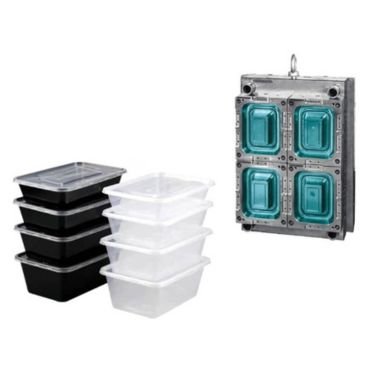

Plastic Dispoable Box Injection MouldThe plastic dispoable box injection mould made as below Parameters:
Work on :220T injection Machine
Mold Core :P20,S136,718
Mold Base :S50c
Mold parameter can be customized as your request .
-

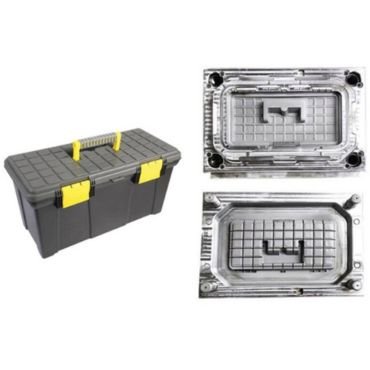

Plastic Tool Box Injection MouldThe plastic tool box injection mould made as below Parameters:
Work on :380T injection Machine
Mold Core :P20,S136,718
Mold Base :S50c
Mold parameter can be customized as your request .
-

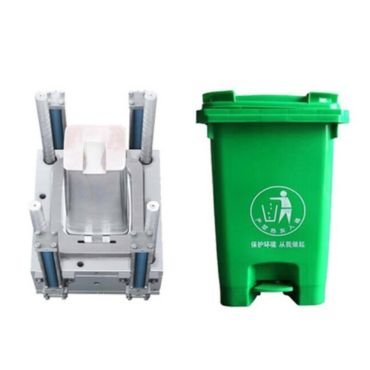

Plastic Dustin Bin Injection MouldThe plastic dustib bin injection mould made as below Parameters:
Work on :780T injection Machine
Mold Core :P20,S136,718
Mold Base :S50c
Mold parameter can be customized as your request .
Injection Mould By Plastic Resin
-

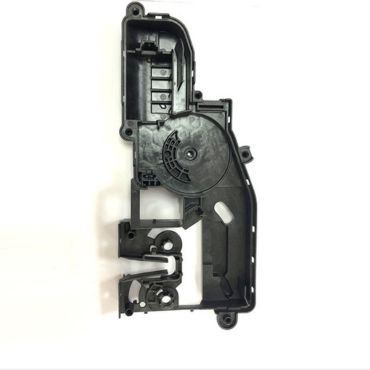

ABS is a thermoplastic often used for injection molding. ABS is relatively cheap and is characterized by high impact resistance and strength, making it an ideal material for many applications, including the production of car parts, motorcycle helmets, LEGO blocks etc.
-

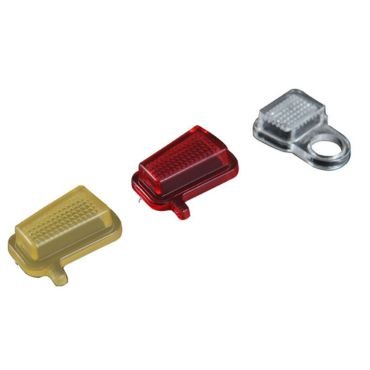

Polycarbonate injection molding (PC)Polycarbonate (PC) is a strong plastic that is often used for injection molding. It is one of the most transparent plastics and is therefore often used in windows, lenses and other optical applications.
-

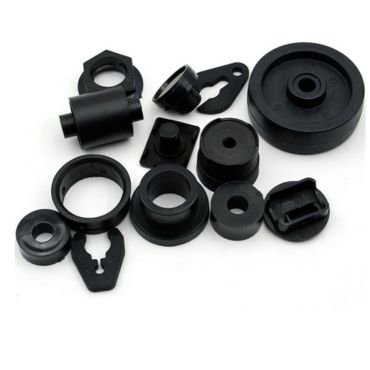

Polyamide (PA), better known as Nylon, is a particularly strong, wear-resistant and impact-resistant material. It is therefore widely used in the automotive industry and agriculture. Polyamide is also widely used in power tools (hand drills, etc.).
-

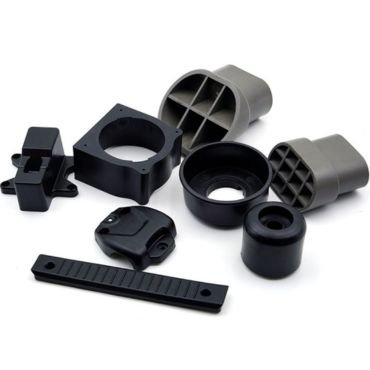

Polypropylene Injection Molding (PP)Polypropylene (PP) is a popular choice for injection molding because it is strong and durable and lightweight. Polypropylene is wide range of applications such as plastic packaging, crates and car parts.
Product Feature Box
D-top Mould has prided itself as a one-stop full-service injection molding making factory .
D-top Mould focus on quality injection molding and total customer service to gain 100% satisfication .
D-top Mould specializes in the product development of plastic products as customized design .
D-top Mould equipped with a highly experienced versatile range of engineering, tooling, and manufacturing capabilities.

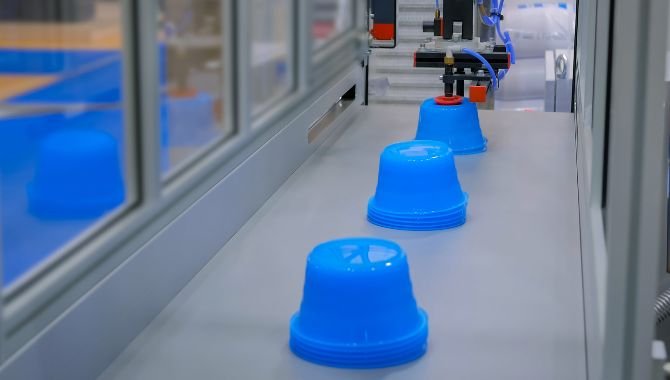

Dtop Mould Advantages
D-top Mould offers competitive and comprehensive injection molding services with the following features:
- Mold manufacturing starting at a cost-effective price of US $1,000.
- Molded part orders beginning from 100+ pieces, with a swift 15-day shipping timeline from China.
- Complimentary design analysis and free resin pellets for testing purposes.
- A full range of services including plastic tooling, secondary operations, and assembly processes.
Our goal is to provide affordable, high-quality molding solutions tailored to meet your specific needs.

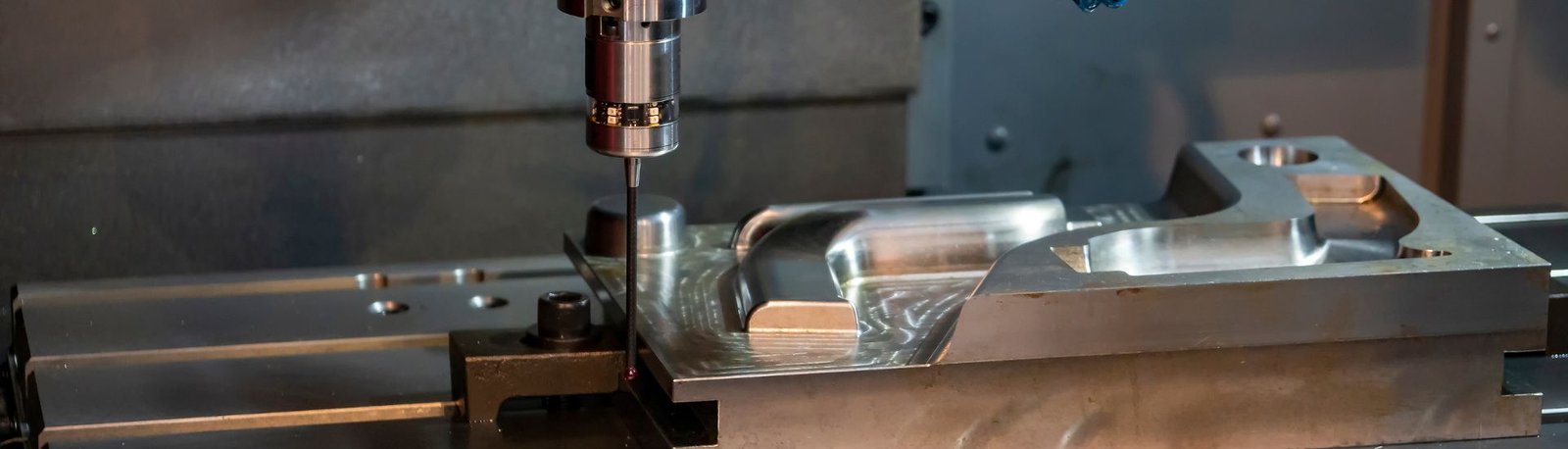

Injection Mould Making Service

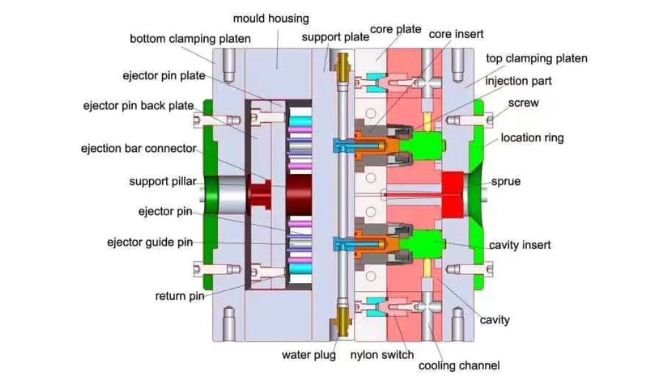

Injection molding involves seven key systems: the Gating System guides molten plastic to the cavities through runners, sprues, gates, and collects initial solidified material in the Cold Slug Well. The Guidance System ensures precise mold alignment during opening and closing. The Molding System forms the product with core and cavity. The Ejection System uses pins and plates to release the finished product. The Cooling System, integral to the mold, uses channels to regulate mold temperature with coolants, which can range from cold water to hot oil, to solidify the product efficiently.

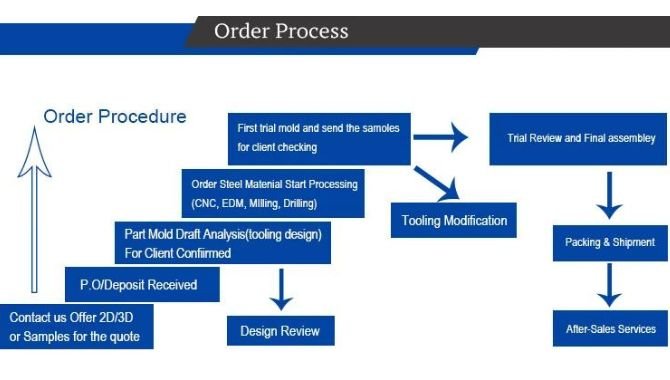

The detailed of Mould Making Process
To initiate the mold-making process with D-top Mould, begin by sending your part design. After receiving a quote from us and confirming your mold order, we will provide a DFM (Design for Manufacturability) report. Once the report is approved, we proceed to craft the mold. Following this, we will produce a testing sample for your approval. After you approve the sample, we will start the part production phase. The final step is the packaging and delivery of the completed parts to your location.

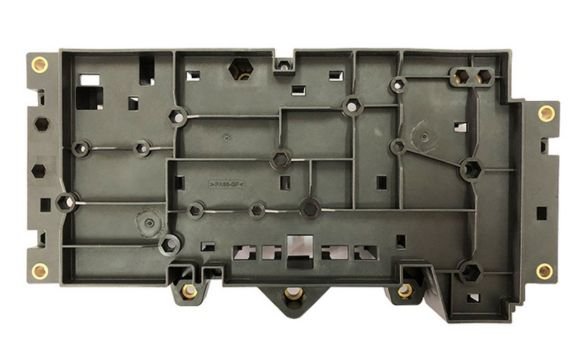

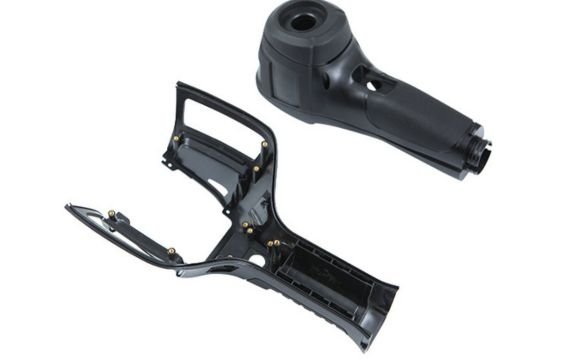

Insert Mould for Auto Parts
Insert mould is the process of moulding plastic parts surrouding by the other inserts .The inserted component is most commonly a small metal parts, such as brass nuts, metal pins and others.D-top Mould help various customers that requested insert moulding. Depending on the customer annual purchase volume, In-house robot plays a major role in the production process.
Special Types of Moulds to Meet Your Request

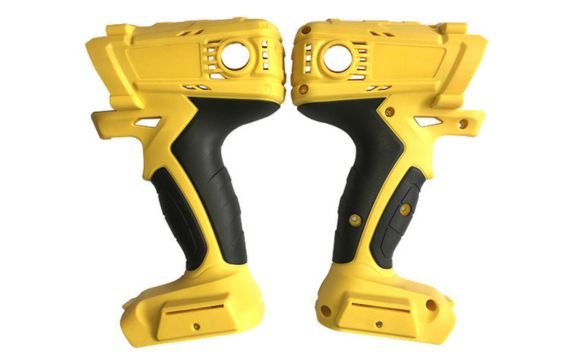

Over moulding is a moulding process in which two or more plastic materials are combined to make a single part. This process usually requires TPE/TPU+ABS materials which are usually used for toothbrush or som hand tools .

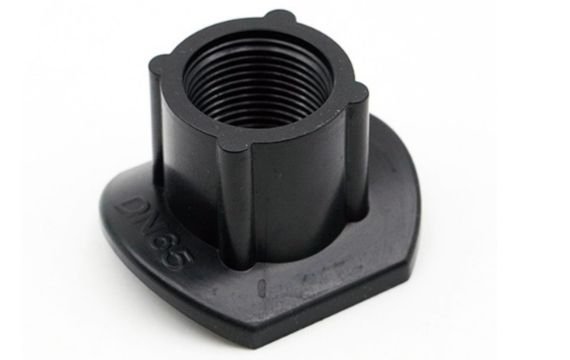

Unscrew mould which is used for some thread inside ,we have rich experience in making this kind of injection mould .We are dedicated to customer satisfication and we offer fast and reliable quotes that are competitive with your tools .
The latest Injection Mould we are working on
At D-top Mould, we take pride in offering top-quality peek injection molding solutions tailored to meet your unique needs. Our advanced manufacturing processes ensure the production of high-strength components with a super gloss finish that not only looks great but also performs exceptionally.

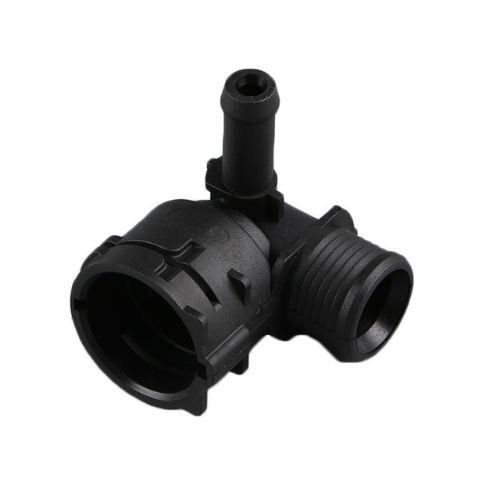

Creating internal threads through injection molding presents unique challenges compared to molding external threads. The intricacy lies in the requirement to produce threads without any visible parting lines. To achieve this, a specialized tooling structure is essential, involving the use of a dedicated component known as the thread core/cavity. This component possesses the entire geometric profile of the threads.

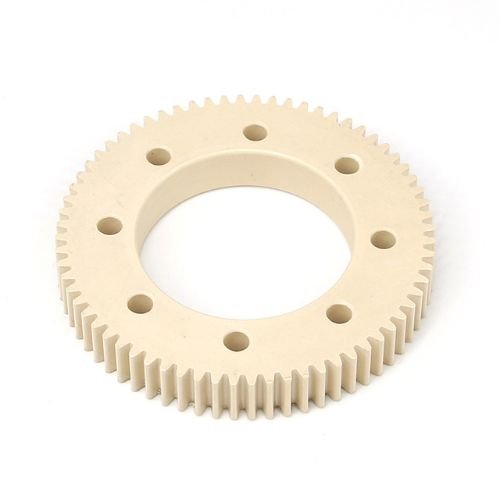

POM, or Polyoxymethylene, stands as a prominent engineering thermoplastic frequently employed in injection molding applications. Its popularity stems from its exceptional attributes, including outstanding fatigue resistance, remarkable strength, and minimal friction
Below have Two Tab, You Can Choose One You Line
- Mould Making Factory
Related Injection Moulds
D-top Mould must be your best choice
Thanks to browse our website ,if you have any other doubts of our mould factory ,please feel free see below FAQS.
We can accept the below files format :
STEP, IGS, DXF, DWG, STL, X_T, CATIA, UG files, sSLDPRT etc.
We usually quote within 12 hours after get your nice drawing .
We make mold as your determined standard but most of LKM ,DME ,HASCO .
Yes. We can make hot runner in the different brand such as DME, Mold Master, Hasco, Yudo, Incoe, Husky, etc.
We can use various steel appointed by a customer or widely used in the market.
Such as P20,H13, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.
